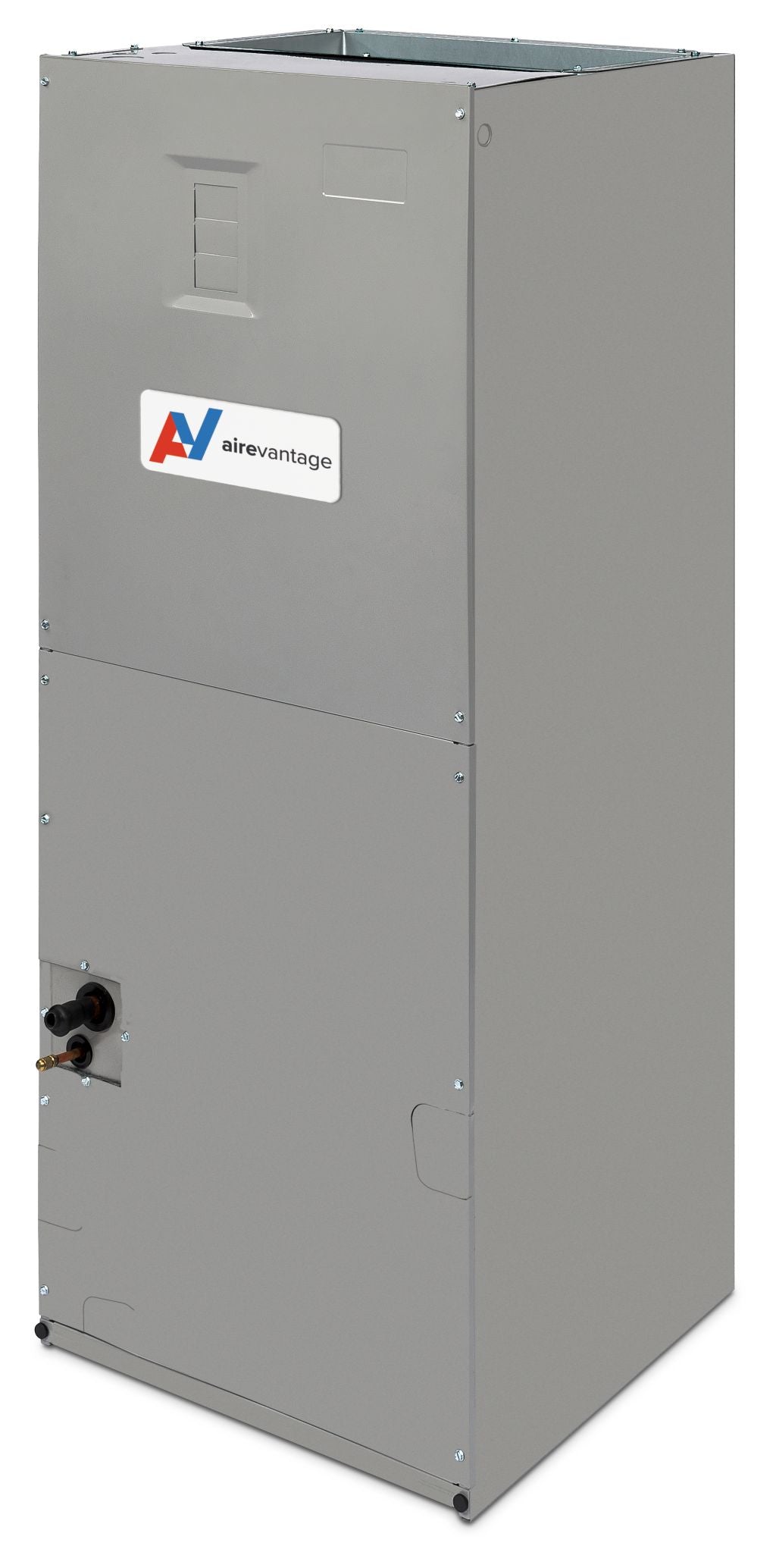

B65BMMX30K-B - 2.5 Ton Multi-Position Air Handler, PSC Motor, Mircochannel Coil, R-454B, 208-240/1/60

Airevantage air handlers include a Microchannel coil that offers a range of benefits that make them an excellent choice for modern HVAC systems. With multiple small channels that maximize surface area for heat exchange, these coils boost both cooling and heating efficiency. Their compact, lightweight design makes for easier installation and a smaller overall footprint, saving you time and space on every job. Standard features include:

Durable, Attractive Cabinet: Made with galvanized steel and a polyester urethane finish, the door offers 50% better corrosion resistance with a 950-hour salt spray rating. The plastic drain pan is also corrosion-resistant.
Multi-Poised: Can be used in horizontal, upflow, downflow and vertical applications.
Multi-Speed: Gives flexibility of installation.
Ease-of-Service: Plug-in wire connections and built-in filter rack makes the air handler easy to service.
Plug-in Heater Kits: Available in 5kw - 25kw
Circuit Board: Incorporating blower time-delay relay, low-voltage terminal strip, and heat-strip sequencing.
Air Handler Control Board: Controls time-sequencing of heat stages.
Breaker Accessibility: Breaker accessible from front of unit when heater is applied.
No Fasteners on Sides or Back: Smooth surfaces for ease of installation.
Cabinet Insulation: 1” insulation with an R-value of 4.2 contributes to quiet operation and prevents cabinet sweating in difficult applications.
Compliant with 610.2.A.2: Meets Florida building code requirements for air leakage.
Aluminum Evaporator Coil: An all-aluminum design prevents leaks caused by formicary corrosion.

Product Specifications

SKU:

B65BMMX30K-B

AHRI - Usage:

Indoor AHU

Air Flow Direction:

Multi-Position

Blower Motor HP:

33/100 HP

Blower Motor RPM:

925

Blower Motor Speeds:

Blower Motor Type:

PSC (Permanent Split Capacitor)

Blower Wheel Diameter:

10"

Blower Wheel Width:

Brand:

Airevantage

Cabinet Width:

22.5

CFM:

661-1,040

CFM Heating:

661-1,040

Color:

Silhouette Gray

Cooling Capacity:

30,000-30,000

Country of Origin:

MEX

Cycle/Hertz:

60 Hz

Drain Connection Size:

7/8"

Electric Heat Range [kW]:

5-10

Energy Star Rated:

Equipment Type:

Heat Pump

ERP ID:

452310

ETL Listed:

Yes

Filter Size:

18" x 20" x 1"

EPS:

Equipment

Heating Capacity:

30,000-30,000

Includes Filter Rack:

Yes

Liquid Line Fitting Type:

Brazed Connection

Liquid Line Size (OD):

3/8"

Maximum Overcurrent Protection (MOCP):

Metering Device:

TXV/TEV - Thermostatic Expansion Valve

Phase:

Single

Product Family:

Air Handler

Prop 65:

Yes

Refrigerant:

R-454B

Stage:

(1) Single

Substantial Commodity:

Steel; Copper; Aluminum

Suction Line Fitting Type:

Brazed Connection

Suction Line Size (OD):

3/4"

Tonnage:

2.5

UL Listed:

UOM:

UPC:

663132535248

Voltage:

208-230 VAC

Weight:

110
