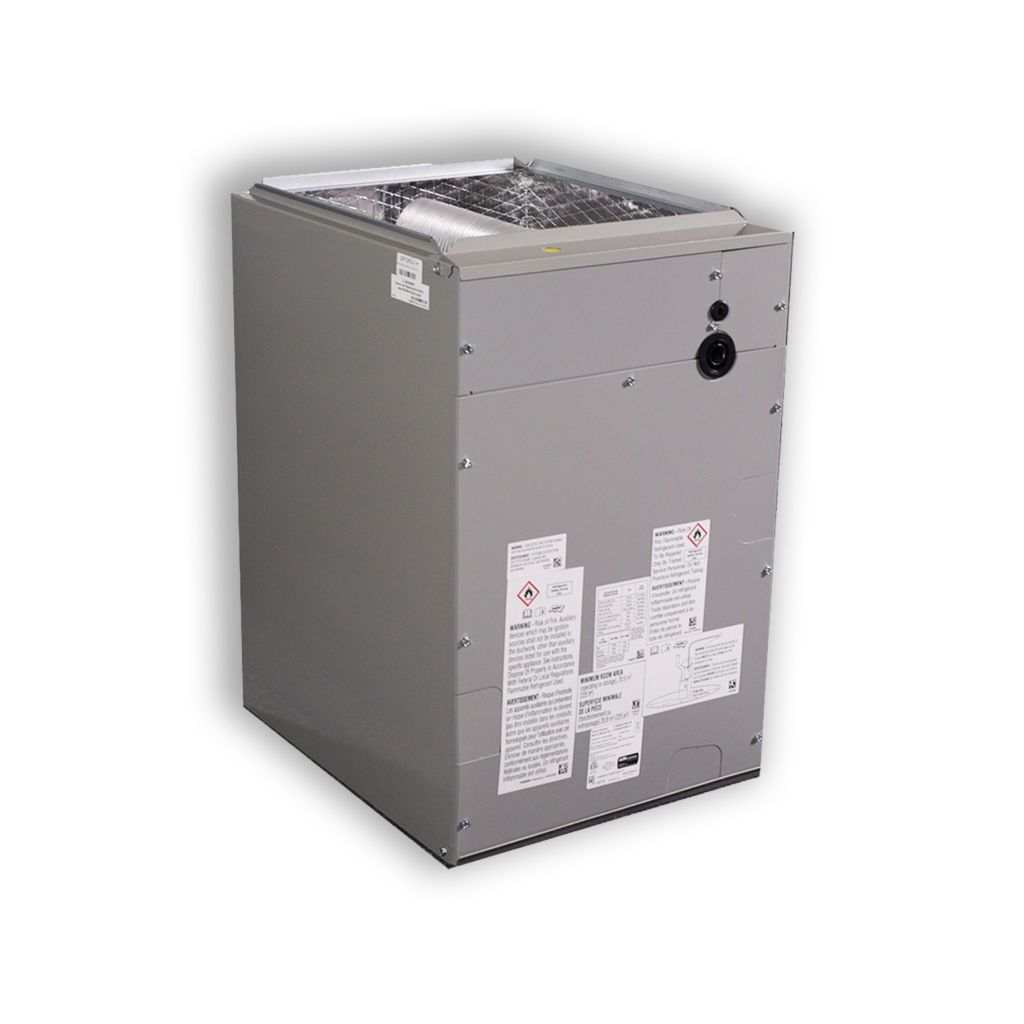

C75BHMX24C-A- Cased Evaporator Coil, 2 Ton Aluminum, Multi-Position with TXV, R-454B

Airevantage caed coils pair perfectly with a AHRI furnace, standard features include:

Constructed of aluminum fins bonded to internally grooved aluminum tubing
Coils are tested at the factory with an extensive refrigerant leak check
Coils have copper sweat refrigerant connections
Feature two sets of 3/4" [19.1 mm] N.P.T. Condensate drain connections for ease of connection
Chatleff metering device connections, at inlet and outlet of TXV
Approved for system application with variety of Rheem outdoor units
Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
Compatible with Germicidal Light System (UV resistant)
Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
Unique drain pan design maximizes application flexibility and condensate removal
Coils are AHRI certified for system application with a variety of AIrevantage outdoor units
Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%1 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.

Product Specifications

SKU:

C75BHMX24C-A

AHRI - Usage:

Indoor Coil

Air Flow Direction:

Upflow / Horizontal

Brand:

Airevantage

Cabinet Width:

14.25

Cased:

Yes

CFM:

525-900

Coil Shape Designation:

A-Coil

Coil Type:

Cased

Cooling Capacity:

18,000-24,000

Country of Origin:

MEX

Drain Connection Quantity:

Drain Connection Size:

7/8"

ERP ID:

452304

EPS:

Equipment

Liquid Line Fitting Type:

Sweat or Braze

Liquid Line Size (OD):

3/8"

Metering Device:

TXV/TEV - Thermostatic Expansion Valve

Product Family:

Cased Coil

Prop 65:

Yes

Refrigerant:

R-454B

Substantial Commodity:

Steel; Copper; Aluminum

Suction Line Fitting Type:

Sweat or Braze

Suction Line Size (OD):

3/4"

Tonnage:

UL Listed:

UL Recognized:

Yes

UOM:

UPC:

663132532605

Weight:

47.25
