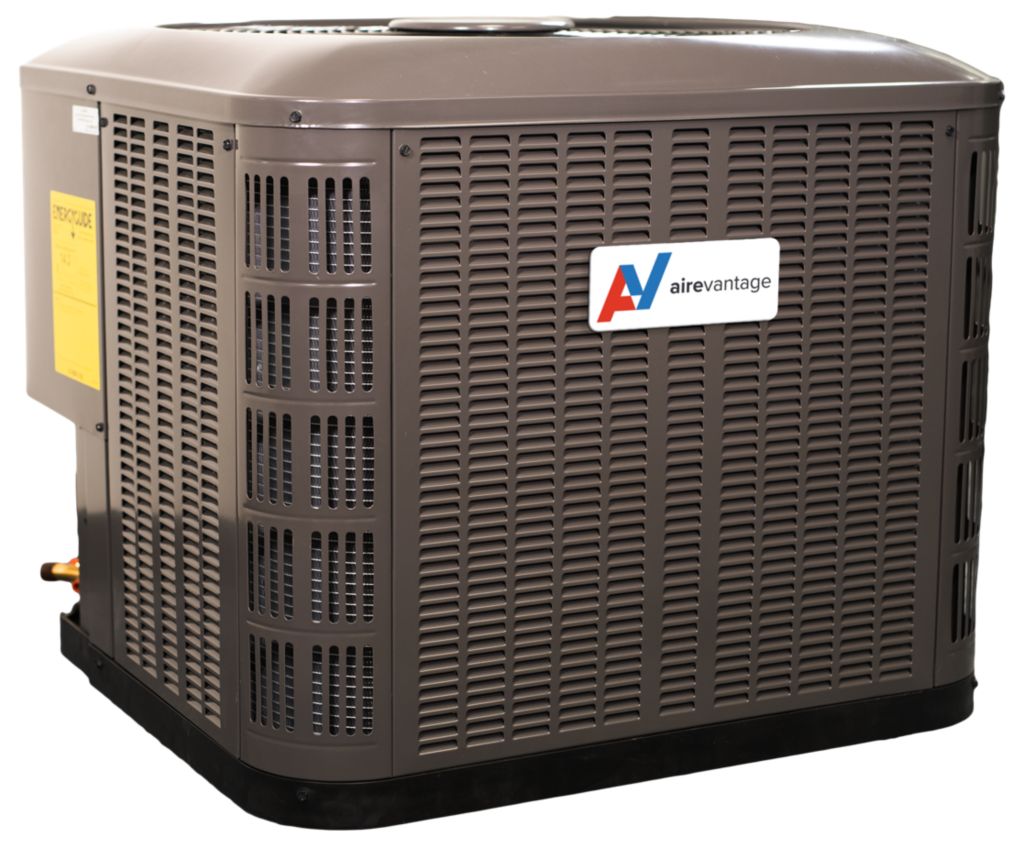

USA4BE5M1SN42K - 3.5 Ton 14.3 SEER2, R-454B, Straight Cool Condenser, With High Pressure Switch, 208-230/1/60

AireVantage Heating & Air-Conditioning systems deliver high-quality performance at an affordable price. Incorporating premium features that are designed to deliver exceptional efficiency, this value line of HVAC products is the perfect choice for budget-conscious homeowners. Standard features includes:

Quality Compressor: State-of-the-art Copeland Scroll™ compressor is standard equipment.
Designed Using Galvanized Steel: Durable brushed stainless steel protects the coil from yard hazards and extreme weather. Unit is trimmed in a silicone-protected polyester finish that passes 950 hours of salt spray per ASTM Std. B117.
Quiet Plus™ Sound Package: Consists of a Quiet Plus™ Compressor Sound Blanket and a Swept-Wing Fan Blade. Both have been engineered to significantly reduce unwanted noise.
Permanently Lubricated Motor: A heavy-duty PSC motor for long-lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.
Removable Top Grille Assembly: Allows ease-of-service from the top without disconnecting fan motor leads.
High-Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
Liquid Line Filter Drier: Included with unit, field installed.
One-Piece Top Orifice: Designed for maximum airflow and quiet operation.
Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided for all controls and the compressor from the side of the unit.
Composite Base Pan: Sound absorbent and corrosion resistant, composite construction is stronger and lighter than steel.
All-Aluminum Coils: Aluminum coils are highly resistant to corrosion.
Servicer-Friendly Jacket: Side panels can be easily removed and replaced without removing the top grill.

Product Specifications

SKU:

USA4BE5M1SN42K

AHRI - Usage:

Outdoor

Brand:

Airevantage

CBU - Compressor Bearing Unit:

Yes

Color:

Bronze

Compressor Type:

Scroll

Condenser Fan CFM:

4400

Condenser Motor HP:

1/4 HP

Condenser Motor RPM:

1,100

Condenser Motor Speeds:

1 (Single)

Condenser Motor Type:

PSC (Permanent Split Capacitor)

Cooling Capacity:

42,000-42,000

Country of Origin:

MEX

Cycle/Hertz:

60 Hz

EER2:

11.7-11.7

Energy Star Rated:

Equipment Type:

Straight Cool

ERP ID:

452305

ETL Listed:

Yes

Fins per Inch (FPI):

EPS:

Equipment

Full Load Amps:

16.18

Inverter:

Liquid Line Fitting Type:

Brazed Connection

Liquid Line Size (OD):

3/8"

Locked Rotor Amps (LRA):

109

Maximum Overcurrent Protection (MOCP):

Maximum Piping Length:

150 ft

Phase:

Single

Product Family:

Split AC Condenser

Prop 65:

Yes

Rated Load Amps (RLA):

14.72

Refrigerant:

R-454B

SEER2:

14.3

Sound Level (dBA):

78-78

Substantial Commodity:

Steel; Copper; Aluminum

Suction Line Fitting Type:

Brazed Connection

Suction Line Size (OD):

7/8"

Tonnage:

3.5

UL Listed:

UOM:

UPC:

663132541256

Voltage:

208-230 VAC

Weight:

211.6
