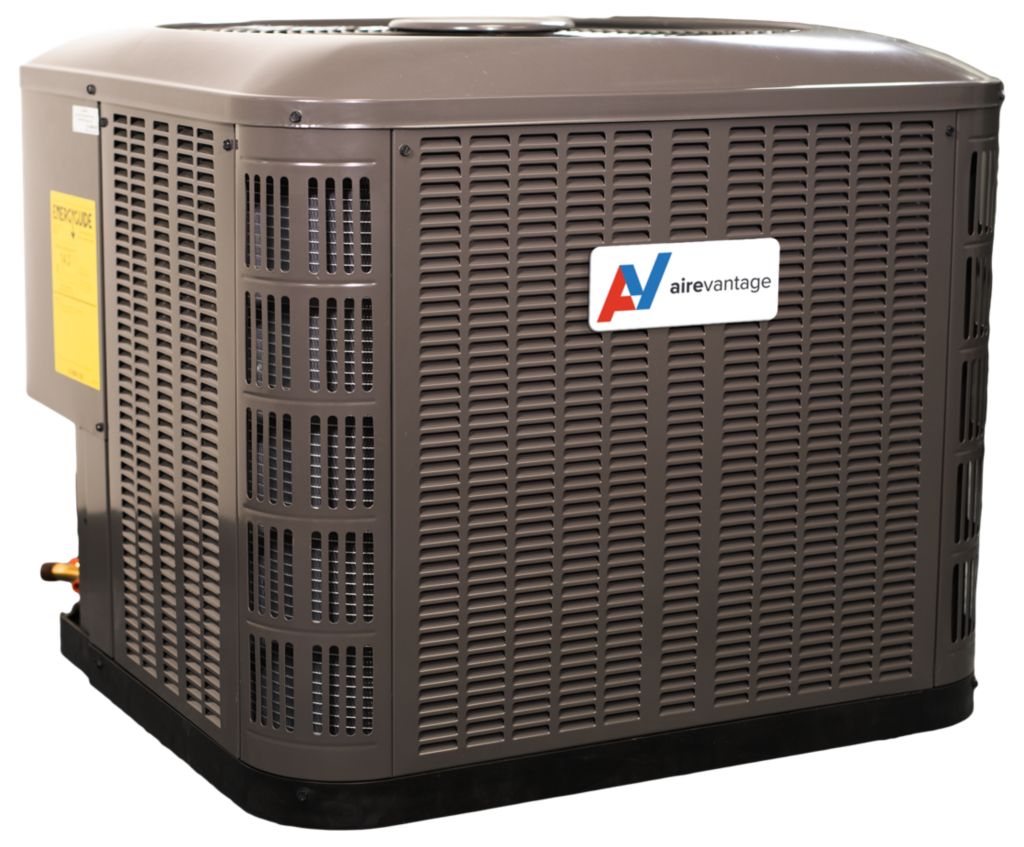

USH4BE5M1SP18K - Classic 1.5 Ton 14.3 SEER2 Heat Pump Condenser, 208-230/1/60

AireVantage Heat Pump systems deliver high-quality performance at an affordable price. Features premium features that are designed to deliver exceptional efficiency, this value line of HVAC products are the perfect choice for budget-conscious homeowners. When paired with our engineered coils or air handlers, they create a complete, high-quality split system to provide optimal comfort and long-term reliability. Standard features include:

Quality Compressor: State-of-the-art Copeland Scroll™ compressor is standard equipment.
Designed Using Galvanized Steel: Units feature a powder-coated paint with a gloss finish that eliminates sharp edges and reduces corrosion, fading, chipping and scratching. It passes 950 hours of salt spray per ASTM Std. B117.
Permanently Lubricated Motor: A heavy-duty PSC motor for long-lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.
Composite Base Pan: Absorbs sound and is corrosion-resistant, composite construction is stronger and lighter than steel.
Removable Top Grille Assembly: Allows ease-of-service from the top without disconnecting fan motor leads.
Swept-Wing Fan Blade: Designed to significantly reduce unwanted noise.
High-Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
Liquid Line Filter Drier: Included with unit, field installed.
One-Piece Top Orifice: Designed for maximum airflow and quiet operation.
Five-Minute Restart Time Delay: When the unit shuts down, a five-minute delay keeps the unit
from restarting, eliminating the highest cause for compressor failure.
Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided for all controls and the compressor from the side of the unit.
All-Aluminum Coils: All-aluminum coils are included in all models to provide high corrosion resistance.
Servicer-Friendly Jacket: Side panels can be easily removed and replaced without removing the top grill.

Product Specifications

SKU:

USH4BE5M1SP18K

AHRI - Usage:

Outdoor

Brand:

Airevantage

CBU - Compressor Bearing Unit:

Yes

Color:

Bronze

Compressor Type:

Scroll

Condenser Fan CFM:

3000

Condenser Motor HP:

33/100 HP

Condenser Motor RPM:

825-1,100

Condenser Motor Speeds:

3 (Three)

Condenser Motor Type:

ECM (Electronically Commutated Motor)

Cooling Capacity:

18,000-18,000

Country of Origin:

MEX

Cycle/Hertz:

60 Hz

EER2:

11-11

Energy Star Rated:

Equipment Type:

Heat Pump

ERP ID:

452302

ETL Listed:

Yes

Fins per Inch (FPI):

EPS:

Equipment

Full Load Amps:

10.9

Heating Capacity:

18,000-18,000

HSPF2:

7.5-7.5

Inverter:

Liquid Line Fitting Type:

Sweat or Braze

Liquid Line Size (OD):

3/8"

Locked Rotor Amps (LRA):

41.5

Maximum Overcurrent Protection (MOCP):

Metering Device:

Piston

Phase:

Single

Product Family:

Split HP Condenser

Prop 65:

Yes

Rated Load Amps (RLA):

8.3

Refrigerant:

R-454B

SEER2:

14.3

Sound Level (dBA):

71-71

Substantial Commodity:

Steel; Copper; Aluminum

Suction Line Fitting Type:

Sweat or Braze

Suction Line Size (OD):

5/8"

Tonnage:

1.5

UL Listed:

UOM:

UPC:

663132541287

Voltage:

208-230 VAC

Weight:

159.8
